Lacron Sureflow LSC 36″ Commercial Side Mount Filter Tank Only (3″ / 90mm Connections)
Main tank structure is made from extremely hard wearing glass reinforced polyester (GRP).
The smooth high gloss internal and external finish ensures free flow and easy cleaning.
Corrosion and UV resistant.
All internal parts and pipe work are upgraded to the highest commercial standard, ensuring long life and minimal servicing.
LSC filters are tested to 4 bar and are designed to operate at a maximum pressure of 2.5 bar.
Inflow diffuser evenly distributes water flow across filter bed.
Hydraulically balanced laterals to maximise flow.
Water drain.
Large filter base for extra stability.
Supplied as tank only with connecting unions.
Waterco SMD 750 Commercial Bobbin Wound Filter Tank Only – 1 Metre Bed (2″ / 63mm Connections)
Fibreglass wound tank with an ultra smooth bobbin finish.
Corrosion and UV resistant.
Large double yoke lid with lifting eye.
Pressure gauge.
Inflow diffuser evenly distributes water flow across filter bed.
Supplied with imperial connections as standard. Metric available on request.
Sight glass fitted as standard.
Manhole access.
Fishtail lateral configuration for maximum hydraulic performance and filtration.
Manual drain.
Water purge and sand dump port.
Large filter base for extra stabilty.
Supplied as tank only.
For dual pressure gauge panel see Pressure Gauges section.

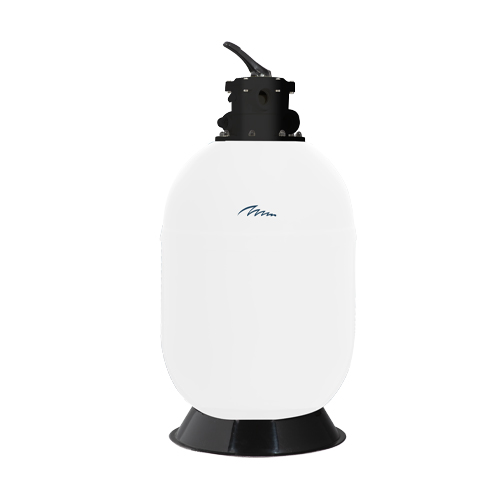

Waterco S750 Micron Bobbin Wound Top Mount Filter Tank Multiport Valve & Gauge
A fishtail lateral design significantly improves filtration by eliminating any “dead legs”, therefore improving water flow distribution though the filter bed.
Inner shell of fibreglass.
Fibreglass wound tank.
UV & corrosion resistant.
Pressure rated at 2.5 bar.
Uses an average of 30% less water for backwashing.
Supplied with pressure gauge, multiport valve with sight glass and barrel unions. Multiport valve supplied with both metric and imperial quick connect unions.
Large sand dump port.
Large filter base for stable floor mounting.
