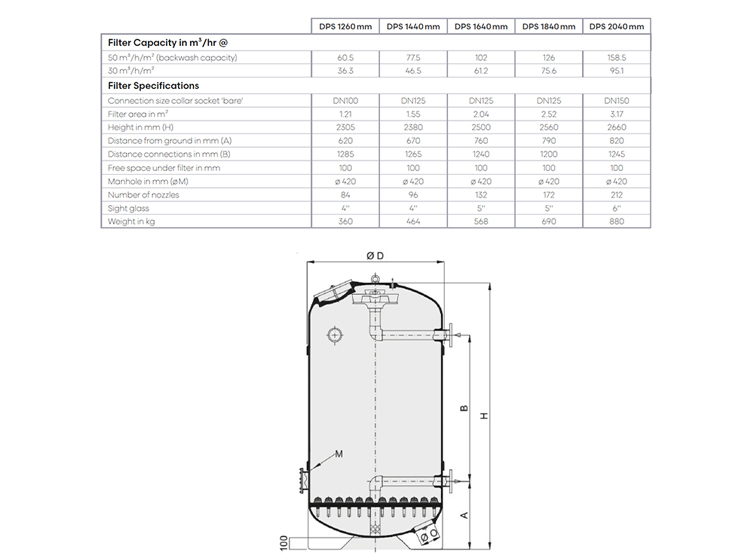

Industrial quality polyester filter, color blue RAL 5015. High bed AFM filter with cap bottom, filter bed height 1200mm. Service manhole ø 420 mm (position 7) and sight glass (position 2), mounted in filter. Working pressure maximum 2.5 bar, test pressure 3.75 bar (available on request with working pressure up to 6 bar). Temperature resistant up to 40°c, ozone resistance on request. Available on request with a lower connection port under the cap base. (according to DIN standard, type 2). Fitted with a steel coated lid, excluding pressure gauge and venting 1″ F (connection provided in filter). Exclusive backwash valve/front tube system, optional automatic or manual selection. Equipped with a lifting eye for safe placement.
All the water and energy saving benefits of the standard MultiCyclone models, but specifically designed for commercial installation.
The MultiCyclone Commercial has 4″?/?110?mm ports and uses 70 cyclones allowing it to function with a flow rate of 90?m³/hr.
Debris can be seen through the clear sight glass and flushed out of the purge valve.
